Bag Closer Sewing Machine - Single Needle, Two Thread NP-32

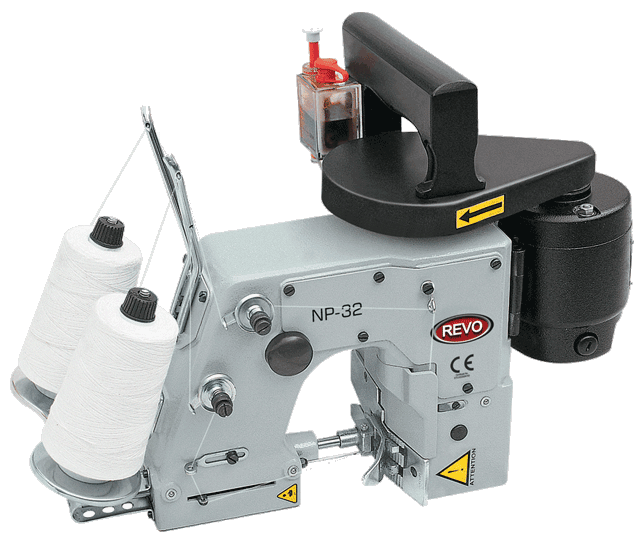

Revo® Bag Closer Sewing Machine - Single Needle, Two Thread NP-32

  1. perfect for bag closing applications demanding high-strength, tight closures - fast
  2. double thread chain-stitch offers superior seam strength and does not unravel if the seam is cut
  3. it is simple to operate, even for inexperienced users as all operations are done with light touch of the switch in the handle
  4. rugged construction offers trouble-free performance even in most adverse conditions in an agricultural or industrial bag closing environment
  5. scissor-type cutter severs thread, bag after bag with minimum effort for maximum productivity
  6. reinforced feed mechanism: wide presser foot, feed dog and throat plate ensures smooth, even looking plain and folded top bag closures
  7. pressure pump system provides oil through internal oil lines to moving parts and helps prolong life of the machine

The machine can be operated completely portable or suspended using the Revo® custom-designed safety
spring balancer unit and hanging hook supplied with the machine. To learn more about our products,
genuine spare parts, thread and other accessories, please contact us.

Specification

SEWING SPEED 1600 stitches per minute (5 to 8 bags per minute)
TYPE OF STITCH Double thread chain-stitch
MATERIAL THICKNESS up to 10mm
THREAD Use Revo® premium & polyester bag-closing thread cones for maximum sewing performance
LUBRICANT 2T Oil or SAE 10
DRIVE MOTOR 220V
STITCH LENGTH 3 per inch (8.5mm) Fixed
TYPES OF BAGS All kinds of woven PP/HDPE, Burlap, Jute, Cotton, Hessian and Multi-wall paper bags
NEEDLE DN X 1 – 200/25 – Groz-Beckret
WEIGHT 6.4 kg. (14 lbs)
